Sensors/Actuators using SAUL

In the previous chapter we learned how to interact with the GPIOs directly, but RIOT provides a more abstract way to interact with sensors and actuators. RIOT calls this the SAUL (Sensors/Actuators Abstraction Layer) system.

The availability of sensors and actuators can vary greatly between different boards, so the SAUL system provides a way to interact with them in a uniform way, regardless of the underlying hardware. So consulting the documentation is always a good idea.

The Makefile

First we need to include the necessary module in the Makefile, to do this add the following line to the Makefile:

USEMODULE += saul
USEMODULE += saul_default

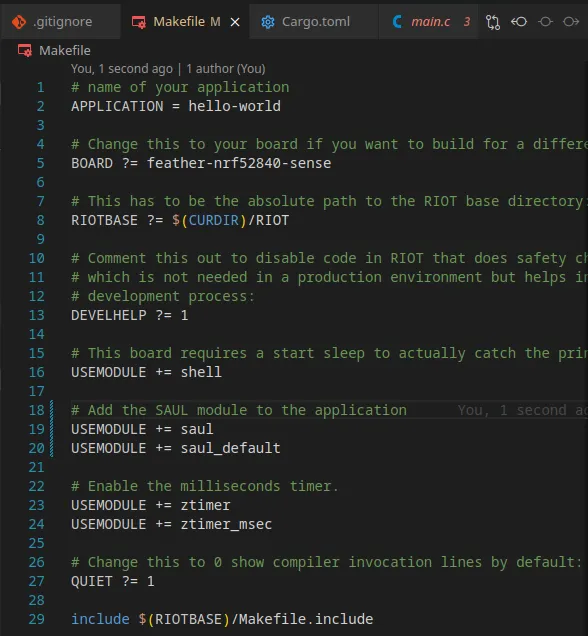

Makefile in VSCode

Including the Headers

Next we need to include the necessary headers in our main.c file. Add the following lines to the top of the file:

#include <stdio.h>
#include "board.h"
#include "saul_reg.h"
#include "ztimer.h"

We need:

  • stdio.h for the printf function,
  • board.h for the board specific configuration,
  • ztimer.h for the ztimer module so we can sleep for a while,
  • and saul_reg.h for the SAUL registry and related functions.

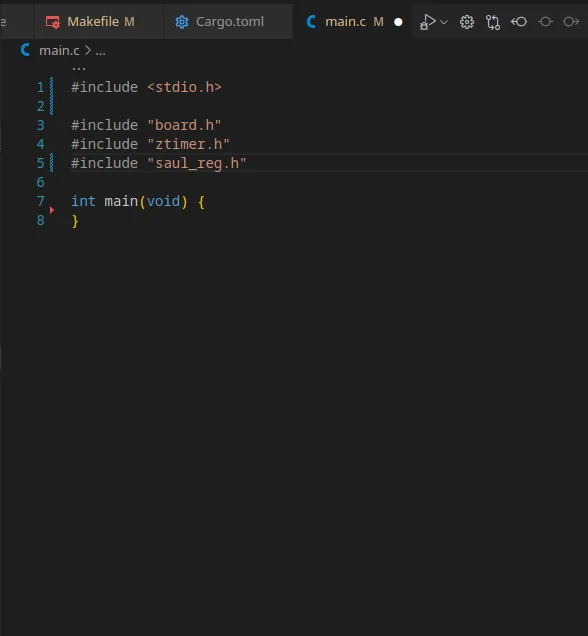

main.c in VSCode

Registering a Sensor

To create a SAUL registry entry RIOT provides a function called saul_reg_find_type which searches for the first device on our board that matches the description we provide.

In this example we will register a temperature sensor, as such we need to simply tell it to search for SAUL_SENSE_TEMP devices.

/* Define our temperature sensor */
saul_reg_t *temperature_sensor = saul_reg_find_type(SAUL_SENSE_TEMP);

This doesn’t actually guarantee that the sensor is available, which is why we also need to check if the sensor truly exists. To do this we create a simple if statement that checks whether the result of the function was NULL or not.

/* Exit if we can't find a temperature sensor */
if (!temperature_sensor) {
puts("No temperature sensor found");
return 1;
} else {
/*
* Otherwise print the name of the temperature sensor
* and continue the program
*/
printf("Temperature sensor found: %s\n", temperature_sensor->name);
}

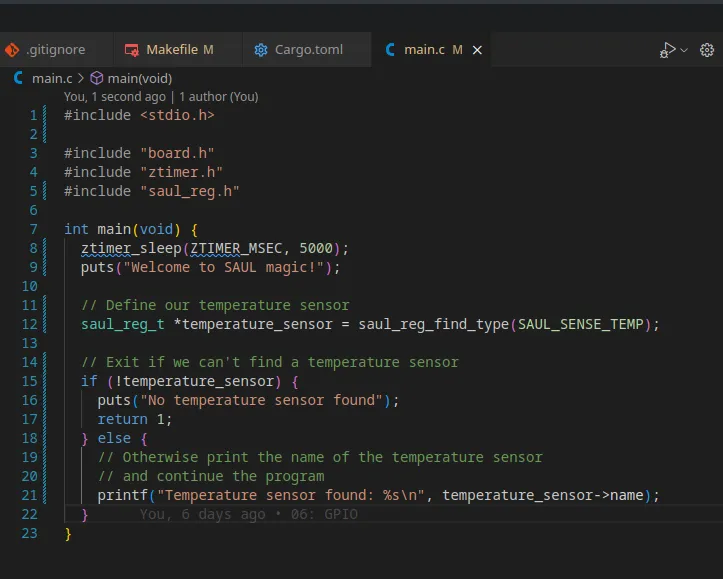

Code to register sensor in VSCode

Congratulations, by this point your program should be able to find a temperature sensor on your board.

Reading the Sensor

Here is where SAUL really shines, to read the sensor we simply call the saul_reg_read function which then stores the result in a phydat_t struct we provide.

/* We start an infinite loop to continuously read the temperature */
while (1) {
/* Define a variable to store the temperature */
phydat_t temperature;
/*
* Read the temperature sensor
* and store the result in the temperature variable
* saul_reg_read returns the dimension of the data read (1 in this case)
*/
int dimension = saul_reg_read(temperature_sensor, &temperature);

Once again, since C doesn’t have exceptions, we need to check if the sensor was read correctly. In this case we simply need to check if the dimension is greater than 0.

/* If the read was successful (1+ Dimensions), print the temperature */
if (dimension <= 0) {
puts("Error reading temperature sensor");
return 1;
}

Now all that is left is to print the temperature to the console and go to sleep.

RIOT provides a simple function to solve this problem, phydat_dump which prints the data in a phydat_t struct to the console.

/* Dump the temperature to the console */
phydat_dump(&temperature, dimension);
/* Sleep for 1 seconds */
ztimer_sleep(ZTIMER_MSEC, 1000);

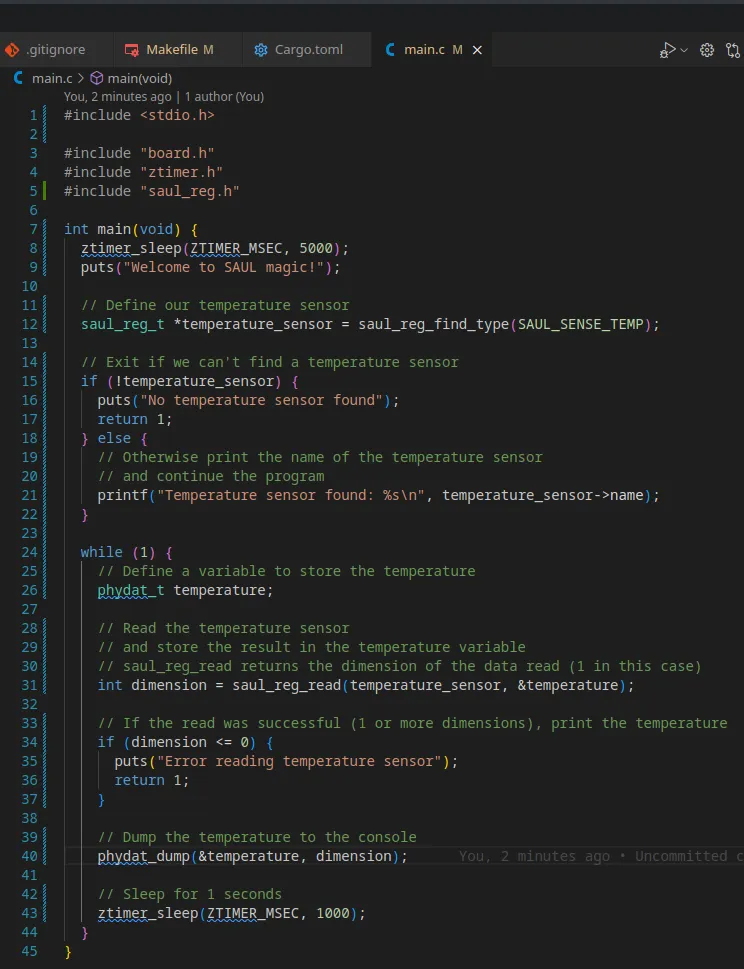

Code to read sensor in VSCode

Building and Running the Program

As always, we need to build and run our program. To do this we use the following commands:

Terminal window
make flash

and then to see the output:

Terminal window
make term

If everything went well, you should see the temperature being printed to the console every second like this:

2024-10-14 15:31:29,610 # Data: 24.50 °C
2024-10-14 15:31:30,134 # Data: 24.50 °C
2024-10-14 15:31:31,134 # Data: 24.50 °C
2024-10-14 15:31:32,134 # Data: 24.50 °C
2024-10-14 15:31:33,135 # Data: 24.50 °C
2024-10-14 15:31:34,135 # Data: 24.50 °C
2024-10-14 15:31:35,136 # Data: 24.50 °C

Conclusion

Congratulations! You have now learned how to use the SAUL system to interact with sensors and actuators in RIOT and how to read the temperature from a temperature sensor. 🎉
